Point density maps in spatialdata-plot

A single Xenium run localises tens of millions of transcripts. Plotting each as its own marker is both infeasibly slow and unreadable — the points pile into a solid blob. render_points(density=True) instead aggregates the points into a 2-D count density with datashader and renders that as a heatmap, so you can see where signal concentrates. By the end you should be able to:

• Turn a huge point cloud into a density map with density=True.

• Reshape the intensity mapping with density_how (linear, log, cbrt, eq_hist).

• Draw a separate density per category by colouring on a categorical column.

• Recognise which parameters density ignores, and why.

We use the full 10x Xenium breast-cancer sample (Janesick et al.) from the SpatialData sandbox — about 43 million transcripts. It is a ~3.6 GB download (allow several minutes and ~4 GB free disk on the first run); it is cached afterwards, and this notebook is not re-executed in CI — its outputs are committed.

Setup

import pooch
import spatialdata as sd
import spatialdata_plot  # noqa: F401  # registers the .pl accessor

# Fetch the SpatialData-Zarr of the Xenium breast sample (cached after the first run).
url = "https://s3.embl.de/spatialdata/spatialdata-sandbox/xenium_rep1_io_spatialdata_0.7.1.zip"
files = pooch.retrieve(
    url=url,
    known_hash="d463c7e82e212ba87843053c5e07648ba4a233d1bef6f22c2085e7f4f18e0e9f",
    path="data/xenium_rep1",
    processor=pooch.Unzip(extract_dir="xenium_rep1"),
)
zarr_root = next(f.split("data.zarr")[0] + "data.zarr" for f in files if "data.zarr" in f)

sdata = sd.read_zarr(zarr_root)
sdata

SpatialData object, with associated Zarr store: /Users/tim.treis/Documents/GitHub/spatialdata-plot/docs/notebooks/examples/data/xenium_rep1/xenium_rep1/data.zarr
├── Images
│     ├── 'morphology_focus': DataTree[cyx] (1, 25778, 35416), (1, 12889, 17708), (1, 6444, 8854), (1, 3222, 4427), (1, 1611, 2213)
│     └── 'morphology_mip': DataTree[cyx] (1, 25778, 35416), (1, 12889, 17708), (1, 6444, 8854), (1, 3222, 4427), (1, 1611, 2213)
├── Points
│     └── 'transcripts': DataFrame with shape: (<Delayed>, 8) (3D points)
├── Shapes
│     ├── 'cell_boundaries': GeoDataFrame shape: (167780, 1) (2D shapes)
│     ├── 'cell_circles': GeoDataFrame shape: (167780, 2) (2D shapes)
│     └── 'xenium_landmarks': GeoDataFrame shape: (3, 2) (2D shapes)
└── Tables
      └── 'table': AnnData (167780, 313)
with coordinate systems:
    ▸ 'aligned', with elements:
        morphology_focus (Images)
    ▸ 'global', with elements:
        morphology_focus (Images), morphology_mip (Images), transcripts (Points), cell_boundaries (Shapes), cell_circles (Shapes), xenium_landmarks (Shapes)

1. The overplotting problem

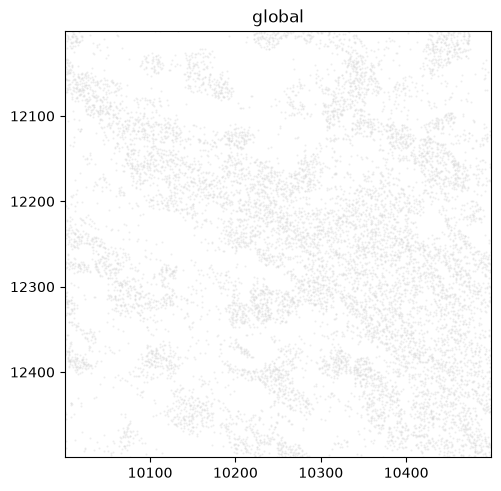

transcripts holds ~43 million points — far too many to draw as markers. Zoomed into a small 0.25 mm² window (500×500 µm, in global-coordinate-system units) and forced onto the matplotlib backend with method="matplotlib", the individual markers already overlap into a solid mass; the full sample would be both unreadable and very slow. Without method, render_points would itself switch to datashader above 10,000 points — the very aggregation we make explicit next.

from spatialdata import bounding_box_query

window = bounding_box_query(
    sdata, axes=("x", "y"),
    min_coordinate=[10000, 12000], max_coordinate=[10500, 12500],
    target_coordinate_system="global",
)
window.pl.render_points("transcripts", size=2, alpha=0.4, method="matplotlib").pl.show()

2. A density map — density=True

density=True bins all the points and colours each bin by its count. Dense regions — ducts, tumour nests — stand out immediately, and the colorbar is a transcript count.

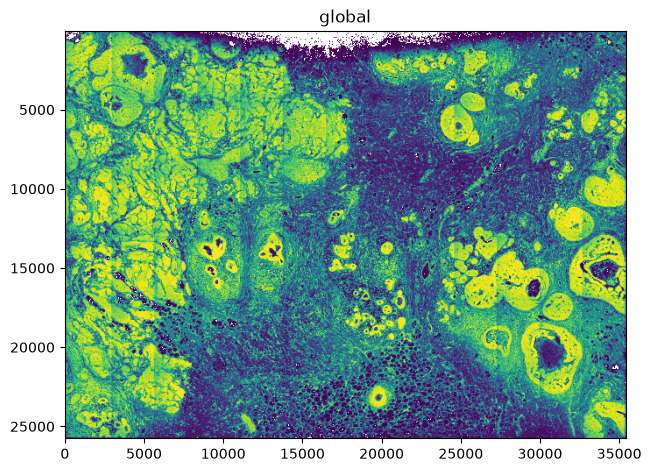

sdata.pl.render_points("transcripts", density=True).pl.show()

3. Reshaping the intensity — density_how

Counts are heavy-tailed, so a linear mapping buries most of the structure below the few densest bins. density_how controls how counts map to colour: linear (a true count axis), log/cbrt (compress the range), and eq_hist (rank-based histogram equalisation, which reveals the most structure but drops the count axis).

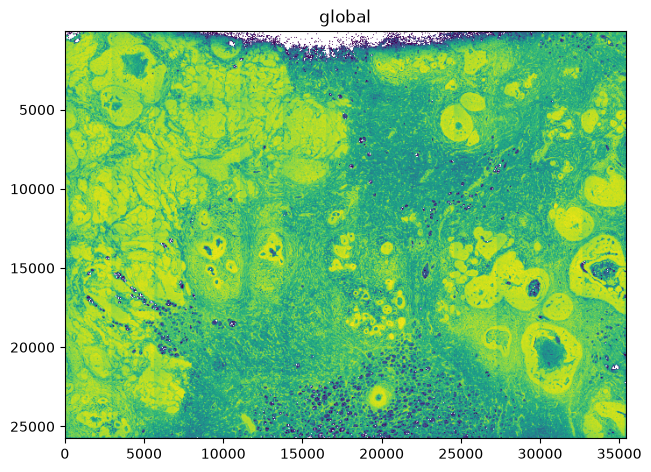

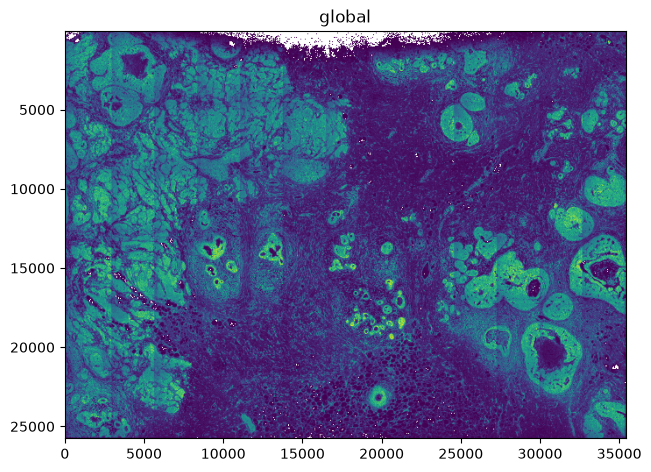

for how in ["linear", "log", "cbrt", "eq_hist"]:
    sdata.pl.render_points("transcripts", density=True, density_how=how).pl.show()

4. Per-category density

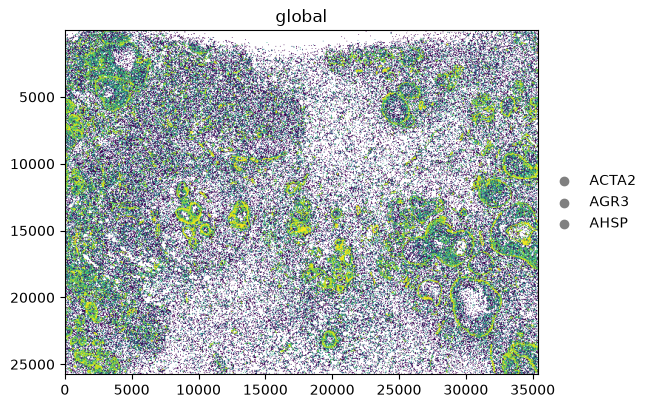

Colouring by a categorical column draws a separate density per category (via datashader.by). Here, three marker genes selected with groups — each traces its own spatial distribution.

sdata.pl.render_points(
    "transcripts",
    color="feature_name",
    groups=["ACTA2", "AGR3", "AHSP"],
    density=True,
    density_how="eq_hist",
).pl.show()

5. What density ignores

Because density aggregates rather than drawing markers, marker-level parameters no longer apply. Setting them under density=True warns and is ignored: size, transfunc, an explicit norm.vmin/vmax, and datashader_reduction (density is always a count). Only color (categorical or None) and density_how shape the result; a continuous color column or a literal colour raises.

# size is ignored under density (warns), the map is unchanged
sdata.pl.render_points("transcripts", density=True, size=50).pl.show()

Summary

• density=True turns an overplotting point cloud (here ~43 M transcripts) into a datashader count density heatmap you can actually read.

• density_how (linear/log/cbrt/eq_hist) reshapes how counts map to colour; eq_hist surfaces the most structure at the cost of the count axis.

• A categorical color draws one density per category; color=None gives the overall density.

• Density ignores marker-level parameters (size, transfunc, norm limits, datashader_reduction) — for those, plot markers on a cropped or smaller element, or use method="datashader" without density.
