Marker shapes for circle elements in spatialdata-plot

render_shapes stores circle elements as a centre point plus a radius (Visium spots, blobs_circles). The shape= argument controls the marker each is drawn with — a circle, a hexagon, a square, or a Visium-style hexagon — without changing the underlying geometry. By the end you should be able to:

• Draw circle elements as circles, hexagons, or squares with shape=.

• Render Visium spots as a hex grid with shape="visium_hex".

• Combine shape= with colouring and outlines.

We use the synthetic blobs dataset for the basic shapes and the real 10x Visium mouse-brain dataset from squidpy for the Visium hexagons, both cached on first use.

Setup

import spatialdata as sd
import squidpy as sq

import spatialdata_plot  # noqa: F401  # registers the .pl accessor

sdata = sd.datasets.blobs()
sdata

SpatialData object
├── Images
│     ├── 'blobs_image': DataArray[cyx] (3, 512, 512)
│     └── 'blobs_multiscale_image': DataTree[cyx] (3, 512, 512), (3, 256, 256), (3, 128, 128)
├── Labels
│     ├── 'blobs_labels': DataArray[yx] (512, 512)
│     └── 'blobs_multiscale_labels': DataTree[yx] (512, 512), (256, 256), (128, 128)
├── Points
│     └── 'blobs_points': DataFrame with shape: (<Delayed>, 4) (2D points)
├── Shapes
│     ├── 'blobs_circles': GeoDataFrame shape: (5, 2) (2D shapes)
│     ├── 'blobs_multipolygons': GeoDataFrame shape: (2, 1) (2D shapes)
│     └── 'blobs_polygons': GeoDataFrame shape: (5, 1) (2D shapes)
└── Tables
      └── 'table': AnnData (26, 3)
with coordinate systems:
    ▸ 'global', with elements:
        blobs_image (Images), blobs_multiscale_image (Images), blobs_labels (Labels), blobs_multiscale_labels (Labels), blobs_points (Points), blobs_circles (Shapes), blobs_multipolygons (Shapes), blobs_polygons (Shapes)

1. The default — circles

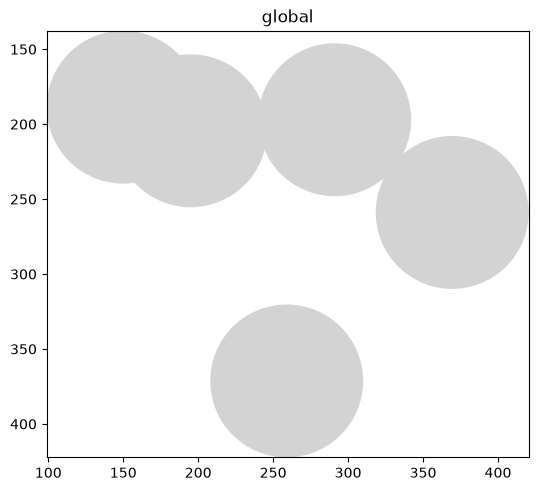

The default is shape=None, which renders each element as its stored geometry — circles here. Passing shape="circle" is equivalent for circle elements.

sdata.pl.render_shapes("blobs_circles").pl.show()

2. Hexagons and squares — shape=

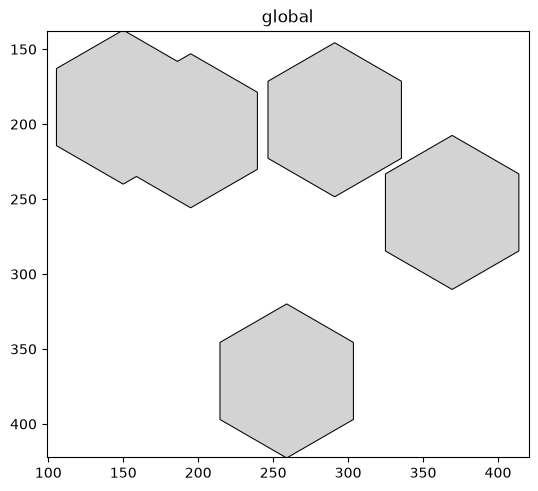

shape="hex" and shape="square" redraw the same circles as hexagons or squares, sized to the radius. Handy when a tiling look reads better than overlapping discs.

for shape in ["hex", "square"]:
    sdata.pl.render_shapes("blobs_circles", shape=shape, outline=True).pl.show()

3. Visium spots as a hex grid — shape="visium_hex"

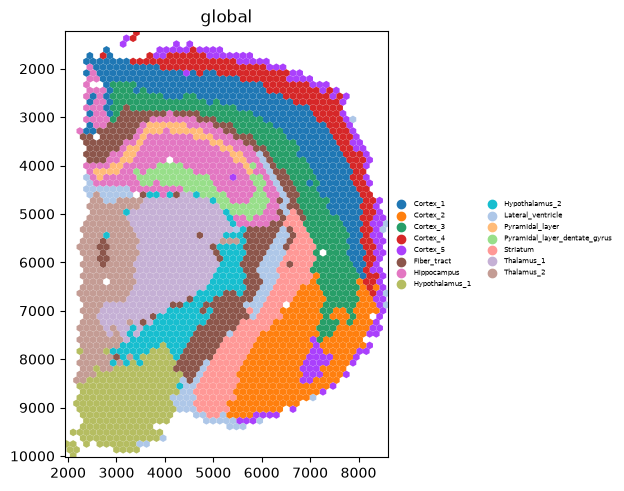

Visium spots sit on a hexagonal grid, and are often drawn as touching hexagons rather than dots. shape="visium_hex" does exactly that. We switch to the real Visium mouse-brain section and colour by its brain-region clusters.

We switch datasets because the synthetic blobs_circles are not a real hexagonal grid. The element name ("spots") and the columns ("cluster", "total_counts") below are specific to this dataset — inspect sdata.shapes and the annotating table’s columns to find the equivalents in your own data.

visium = sq.datasets.visium_hne_sdata()
visium.pl.render_shapes(
    "spots", shape="visium_hex", color="cluster"
).pl.show(legend_loc="right margin", legend_fontsize=5)

INFO     Loading existing dataset from data/spatialdata/visium_hne_sdata.zarr

4. Combining shape= with colour and outline

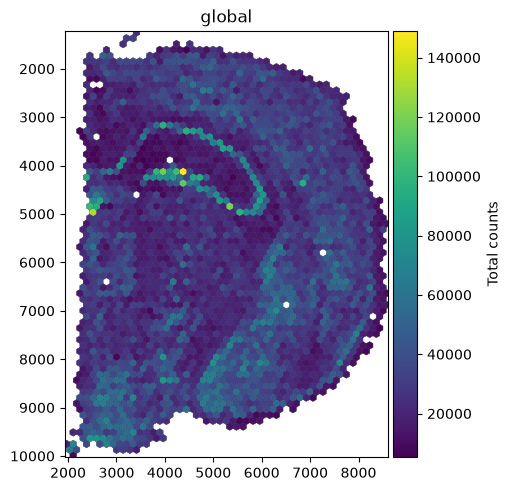

shape= composes with the usual styling — colour by a column, add an outline, set fill_alpha (see the Styling shapes and labels tutorial).

(See the Legends and colorbars example for legend_loc and colorbar_params.)

visium.pl.render_shapes(
    "spots", shape="visium_hex", color="total_counts",
    outline=True, outline_width=0.3, outline_color="black",
).pl.show(colorbar_params={"label": "Total counts"})

Summary

• Circle elements (Visium spots, blobs_circles) carry a centre and radius; shape= chooses the marker they are drawn with, leaving the geometry unchanged.

• shape= accepts None (the default, render as-is), "circle", "hex", "square", and "visium_hex"; this tutorial uses circle elements (centre + radius), which shape= is designed for.

• shape="visium_hex" renders Visium spots as a touching hex grid — the familiar Visium look.

• shape= composes with colour, outline, and the other styling arguments.
